Monoblock Liquid Ring Vacuum Pumps – Technical Description
- General Description

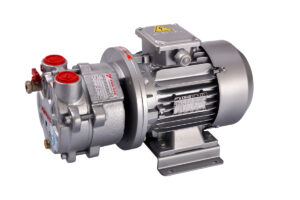

Water circulating monoblock vacuum pump
Monoblock liquid ring vacuum pumps are compact vacuum systems designed for creating vacuum in various industrial processes that involve the transfer of gases and vapors. In these systems, the motor and pump housing are integrated into a single unit. These pumps offer a reliable, low-maintenance, and long-lasting solution, particularly suited for continuous operation on production lines. Compared to traditional vacuum pumps, they exhibit lower wear and tear, resulting in reduced maintenance and operating costs.

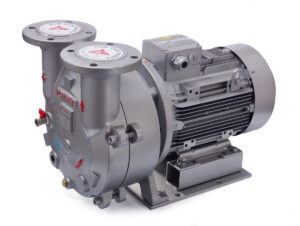

Monoblock Water Ring Vacuum Pump
Vacuum generation is based on the liquid ring principle. Water is typically used as the working fluid, though oil or other suitable liquids may be used for special applications. These pumps can handle wet and contaminated gases, and are capable of operating safely even in aggressive environments. The monoblock design minimizes the need for external connections, making installation and commissioning quick and easy.
- Working Principle

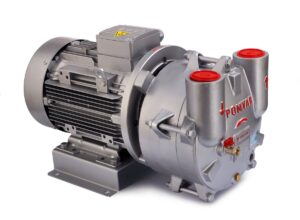

Monoblock water ring vacuum pump
A monoblock liquid ring vacuum pump primarily consists of an impeller (rotor), pump casing, and working liquid. Its operation involves the following steps:
- Startup & Liquid Filling: A specific volume of liquid is filled into the pump casing. This liquid is essential for generating centrifugal force and creating vacuum.
- Impeller Rotation: The eccentrically mounted impeller begins rotating, causing the liquid between the impeller blades to be flung toward the inner wall of the casing, forming a rotating liquid ring.
- Formation of Liquid Ring: The liquid ring creates a series of sealed cavities between the impeller blades and the casing.
- Gas Suction: As the impeller rotates, the volume of the cavities near the inlet increases, creating a vacuum and drawing gas into the pump.
- Compression: Continued rotation compresses the gas as the cavity volume decreases.
- Discharge: Once compressed, the gas is expelled through the discharge port. This continuous process maintains the vacuum during operation.
This principle allows liquid ring vacuum pumps to operate efficiently and handle moist or dirty gases without requiring lubrication or additional filtration systems, ensuring consistent and reliable performance.
- Technical Specifications

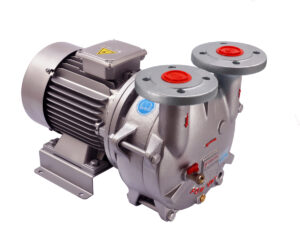

Compact water vacuum pump
- Ultimate Vacuum Level: Down to 33 mbar
- Flow Rate Range: 10 – 370 m³/h
- Motor Type: Integrated monoblock motor
- Materials: Cast iron, stainless steel, or bronze
- Working Fluids: Water, oil, or other compatible liquids
- Noise Level: Low noise and vibration operation
- Advantages
- Compact, Integrated Design: Simplifies installation and operation without external connections.
- Easy Maintenance: Minimal wear and simple internal components reduce maintenance costs.
- Energy Efficiency: Compact build and high-efficiency motors help lower energy consumption.
- Durability: Built from wear- and corrosion-resistant materials for long service life.
- Quiet & Smooth Operation: Quieter and more stable than conventional vacuum pumps.
- Self-Priming Capability: Can operate without auxiliary pumps or lubrication systems.
- Applications
Food Industry
- Extends shelf life through vacuum packaging.
- Prevents spoilage by removing moisture in food drying processes.
- Concentrates liquids like milk and juice via vacuum evaporation.
- Eliminates air bubbles from liquid food products.
Chemical & Petrochemical Industry
- Used in solvent recovery and gas extraction.
Liquid cycle monoblock vacuum pump
- Enables controlled reaction environments by creating vacuum in reactors.
- Recovers vapor to reduce chemical waste.
- Safely removes hazardous or flammable gases.
Pulp & Paper Industry
- Accelerates drying by removing water via vacuum.
- Aids in filtration and pressing of paper fibers.
- Keeps production lines clean by removing dust and debris.
Water Treatment & Environmental Technology
- Used in degassing during wastewater treatment.
- Supports biogas recovery for energy generation.
- Helps purify water by removing dissolved gases.
Medical & Pharmaceutical Industry
- Ensures precise packaging of liquid medicines with vacuum filling systems.
- Removes microorganisms during sterilization.
- Distributes coating material evenly in tablet coating processes.
- Assists in obtaining pure substances through vacuum distillation.
Metallurgy & Mining
- Removes gases generated during metal melting processes.
- Applies thin coatings to metal surfaces in vacuum coating systems.
- Eliminates harmful particles generated during metal processing.
- Enhances metal purity through gas removal, improving product quality.
Monoblock liquid ring vacuum pumps are highly versatile thanks to their robust construction, efficient operation, and minimal maintenance requirements. With various capacity and material options tailored to operational needs, they offer maximum performance and durability across a wide range of industries.
