Single-Stage Liquid Ring Vacuum Pumps: Technical Explanation
Introduction
Single-stage liquid ring vacuum pumps are one of the vacuum pumps widely used in industrial applications. These pumps stand out with their efficient operating performance, low maintenance requirements, and durability in systems requiring gas transfer. This article will discuss the working principle, structural features, advantages, and areas of use of single-stage liquid ring vacuum pumps.
- Working Principle of Single-Stage Liquid Ring Vacuum Pumps
Single stage water circulation vacuum pump
Single-stage liquid ring vacuum pumps operate based on the principle of compressing and discharging gas with the help of a rotor located in the center and a liquid ring formed around this rotor.

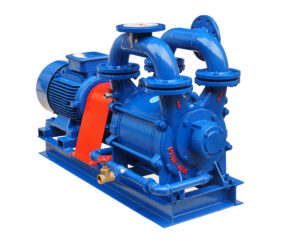

Water-ring single-stage vacuum pump
- Water or a suitable liquid is filled into the pump.
- As the rotor rotates, the centrifugal force pushes the liquid toward the inner walls of the pump casing, forming a ring.
- Due to the eccentric placement of the rotor, the volumes between the rotor blades change, causing gas to be drawn in, compressed, and discharged.
In this way, single-stage liquid ring vacuum pumps create an effective vacuum in industrial vacuum applications.
- Structural Features
The main structural components of single-stage liquid ring vacuum pumps are as follows:

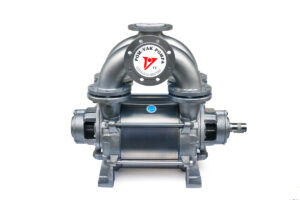

Single Stage Liquid Ring Vacuum Pump
- Rotor: Located at the center of the pump and is the moving part.
- Pump Casing: The outer structure that forms the liquid ring.
- Suction and Discharge Ports: Allow gas to enter and be discharged.
- Liquid Inlet Point: Ensures the replenishment of the liquid inside the pump.

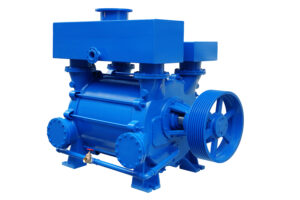

Single-Stage Liquid Ring Vacuum Pump
Advantages
The advantages offered by single-stage liquid ring vacuum pumps are as follows:
- Low Maintenance Requirement: Requires less maintenance compared to oil-based systems.
- Quiet and Vibration-Free Operation: Operates at a low noise level without causing disturbance.
- Applicability for Different Gases: Can also absorb moist and dirty gases.
- Long Lifespan: Resistant to wear.
- Areas of Use
Single-stage liquid ring vacuum pumps have a wide range of industrial applications:
- Chemical Industry: Used in gas recovery, solvent recycling, and vapor removal processes.
- Food Industry: Effective in vacuum packaging, frozen food production, and liquid food processing applications.
- Textile Industry: Preferred in drying and dehumidification processes.
- Energy Sector: Used in turbine condensation systems and gas removal processes.
- Paper and Pulp Industry: Plays an important role in vacuum paper drying and water removal processes.
- Healthcare and Pharmaceutical Industry: Used in applications such as drug production, sterilization, and vacuum distillation.
Türkiye’s Flagship Vacuum Pump
Conclusion
Single-stage liquid ring vacuum pumps are preferred in various industrial applications due to their effective vacuum capacity and low maintenance requirement. Thanks to their high durability and ability to work with various gas types, they can be used in many sectors such as chemical, food, textile, energy, paper, and healthcare. Therefore, selecting a suitable model according to the required vacuum level and process requirements is important.
